Nuevo termostato inteligente con perilla, controlador de temperatura WIFI, termostato de aire acondicionado, unidad de bobina de ventilador, controlador de CA para la habitación del hogar

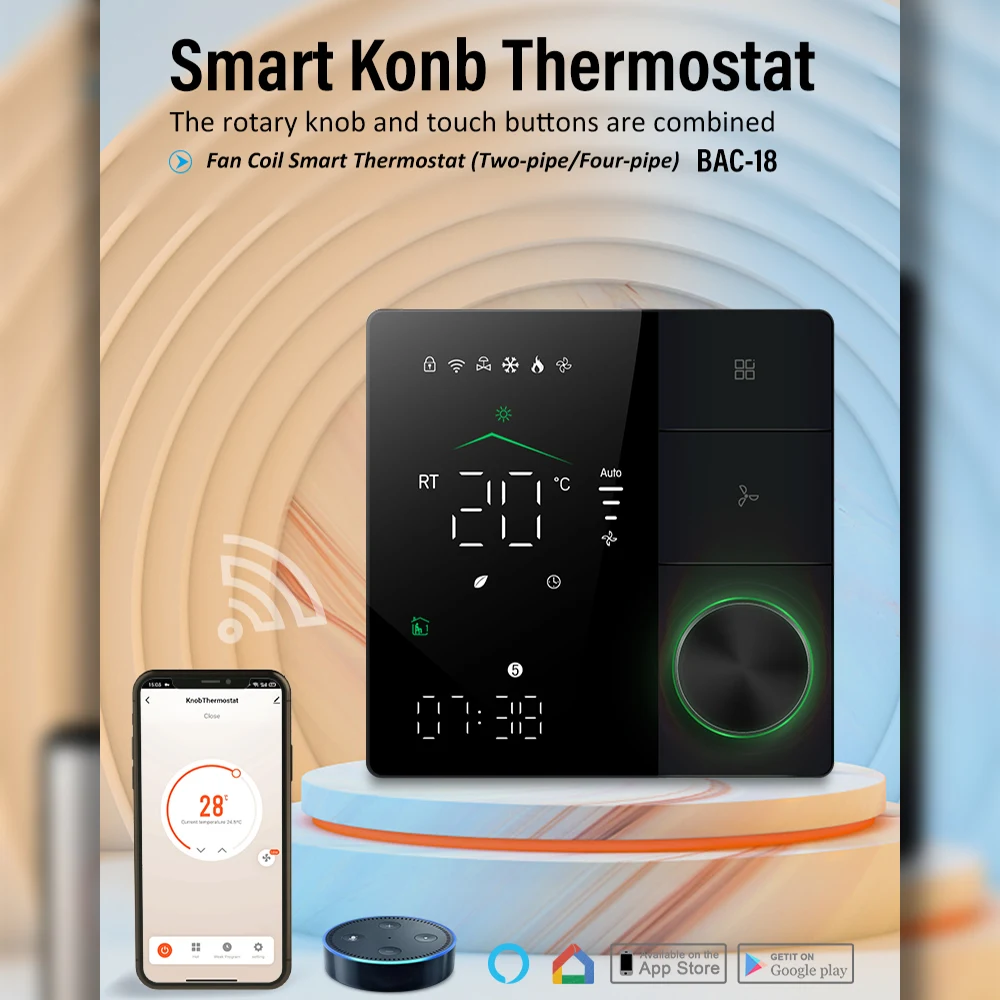

New Smart Thermostat with Knob WIFI Temperature Controller Air Conditioning Thermostat Fan Coil Unit AC Controller for Home Room

Please note the difference in options.
【With WiFi or no wifi optional]

2P:Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve.
4P:Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and Two Wired Cool Valve.

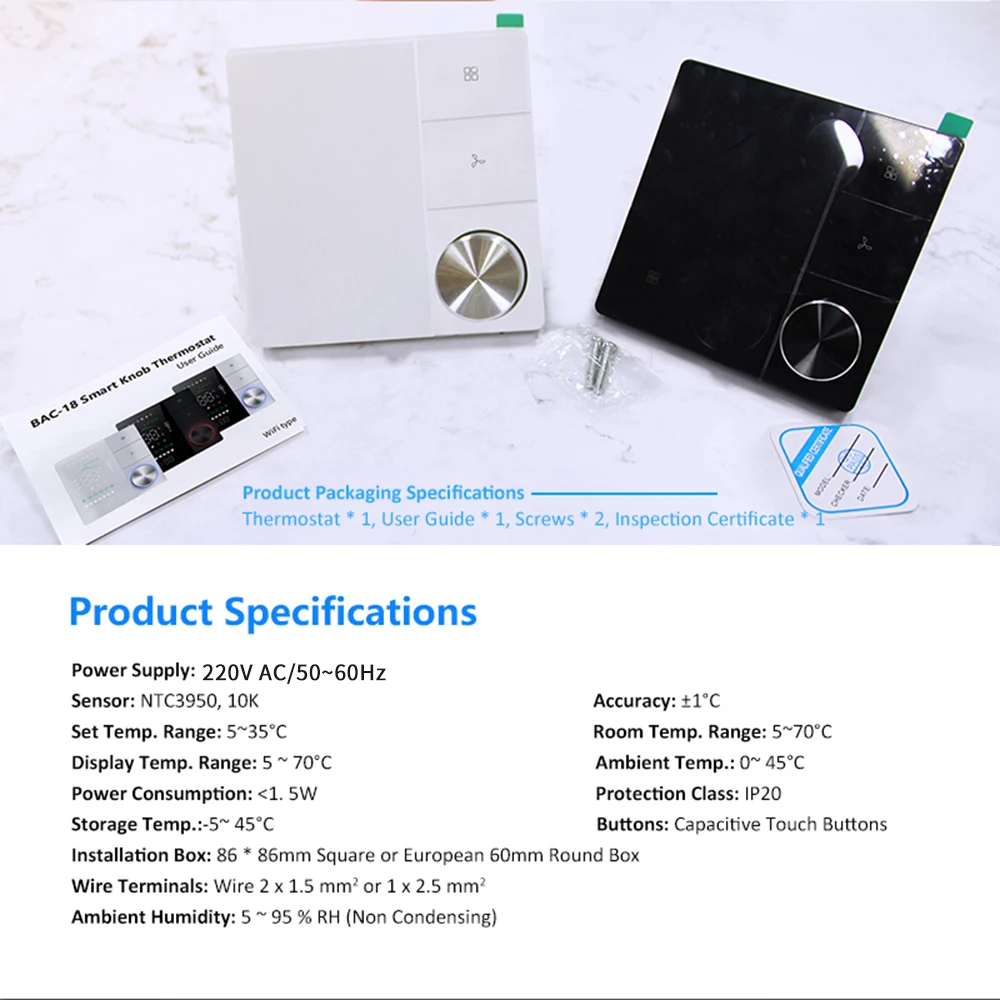

Specifications

Power Supply: 95 ~240 VAC, 50~60Hz or 24V DC/AC,50~60Hz
Please check the information laser printed on the back of the thermostat for the actual voltage.

Fan Relay Amps Resistance: 5A; Inductive: 3A
Valve Relay Amps Resistance: 3A; Inductive: 1A
Sensor: NTC3950, 10K
Set Temp. Range: 5 -35 ℃
Accuracy: ±1 ℃
Dispaly Temp. Range: 5 ~ 70℃
Ambient Temp.:0~45 ℃
Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
Storage Temp.:-5~ 45 ℃ Timing Error: 1%
Power Consumption: 1.5W
Shell Material: PC +ABS ( Fireproof)
Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 X 1.5 mm² or 1 x2.5 mm²
Protection Class: IP20
Buttons: Capactive Touch Buttons

On Appearance

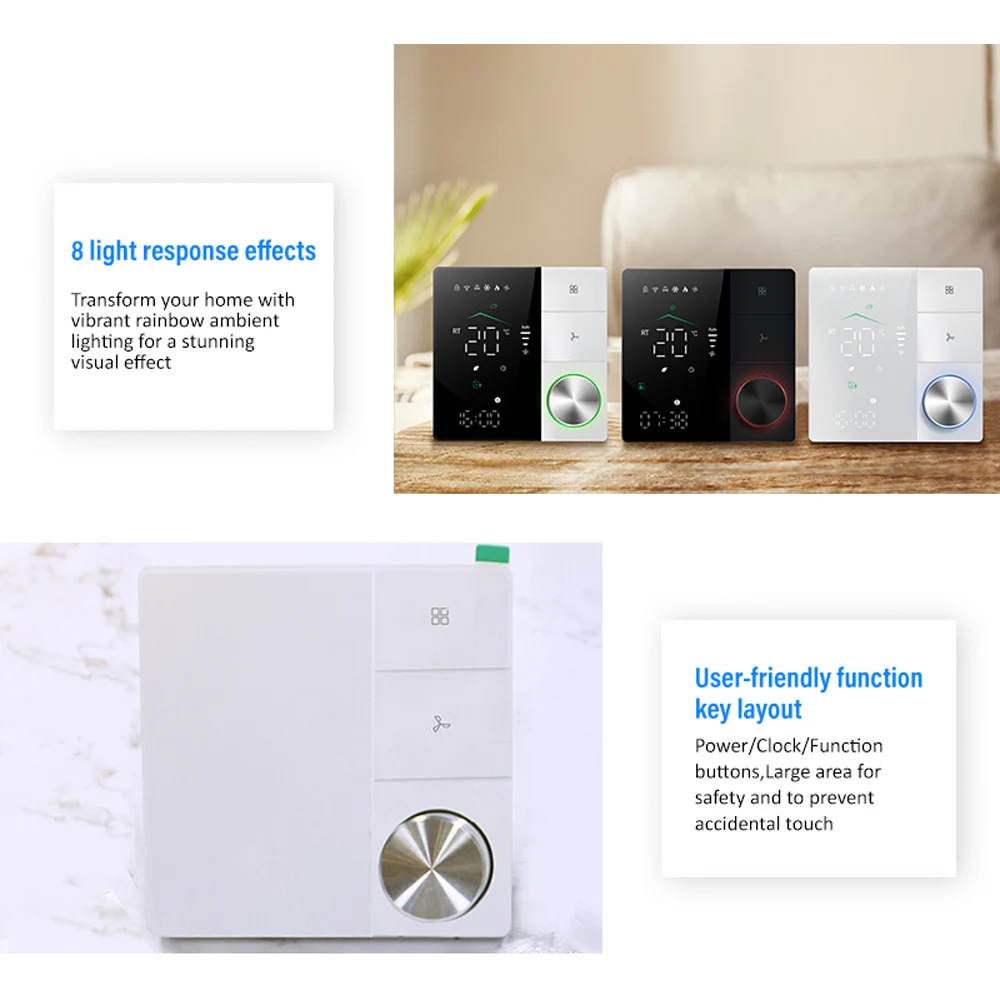

1. LED display, more friendly interface;. LED matrix light, simple display, energy
saving, protect your eyes.

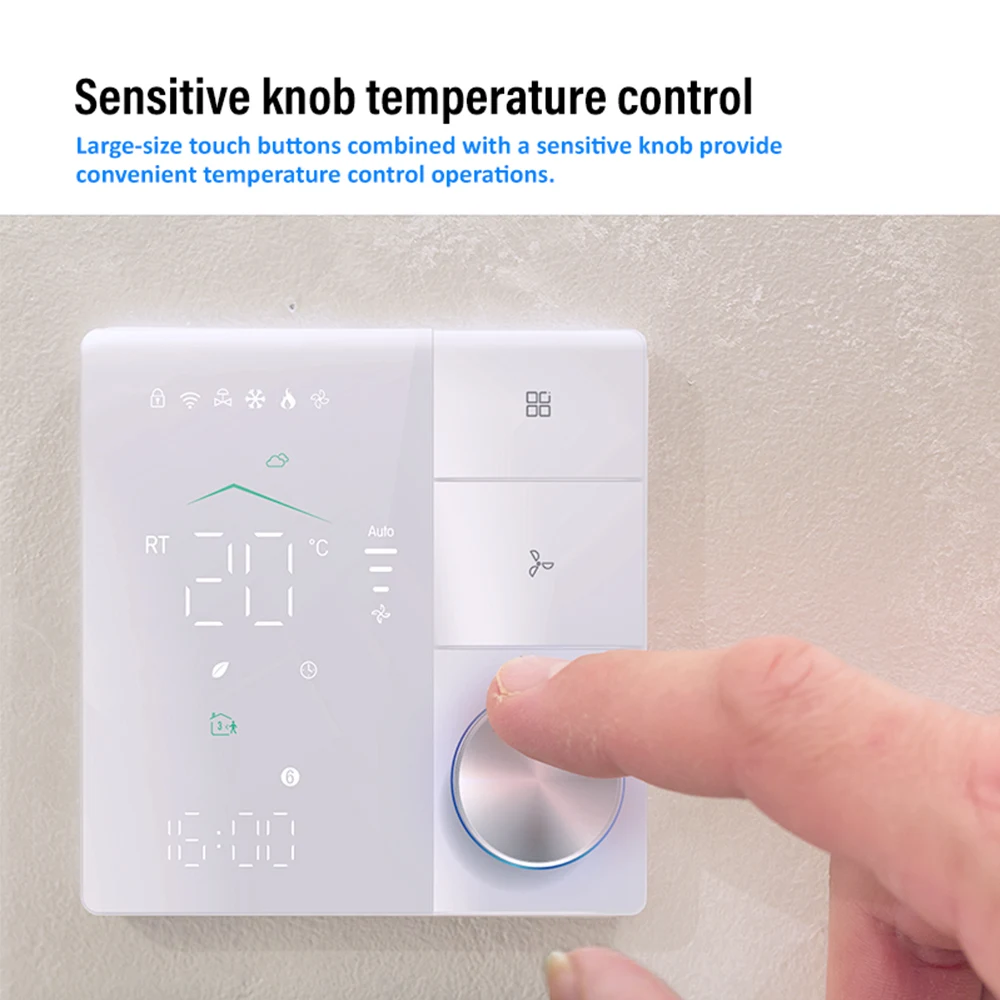

2. Touch buttons to make simple operation.

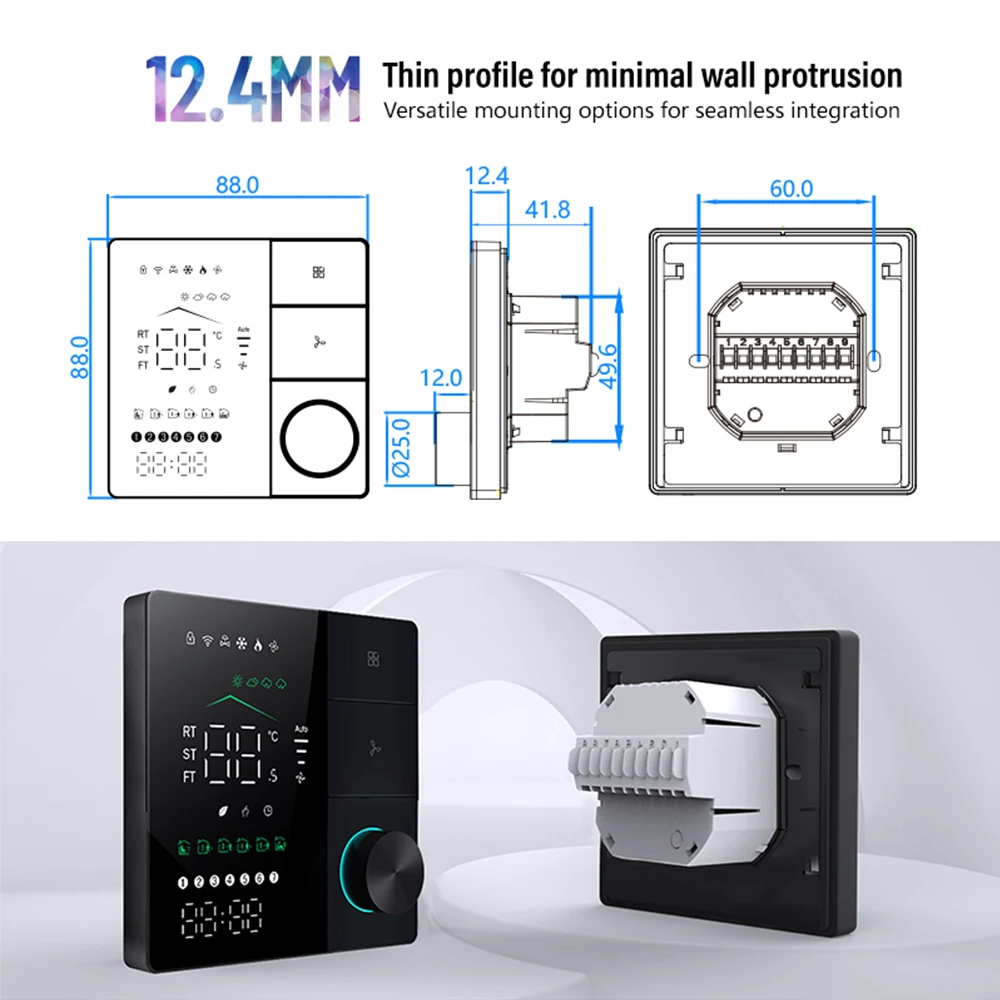

3. The ultra-thin embedded panel perfectly fits all kinds of walls; The visiable thickenss above the wall is only 12.4mm.
4. Frameless acrylic panel design, simple and elegant;

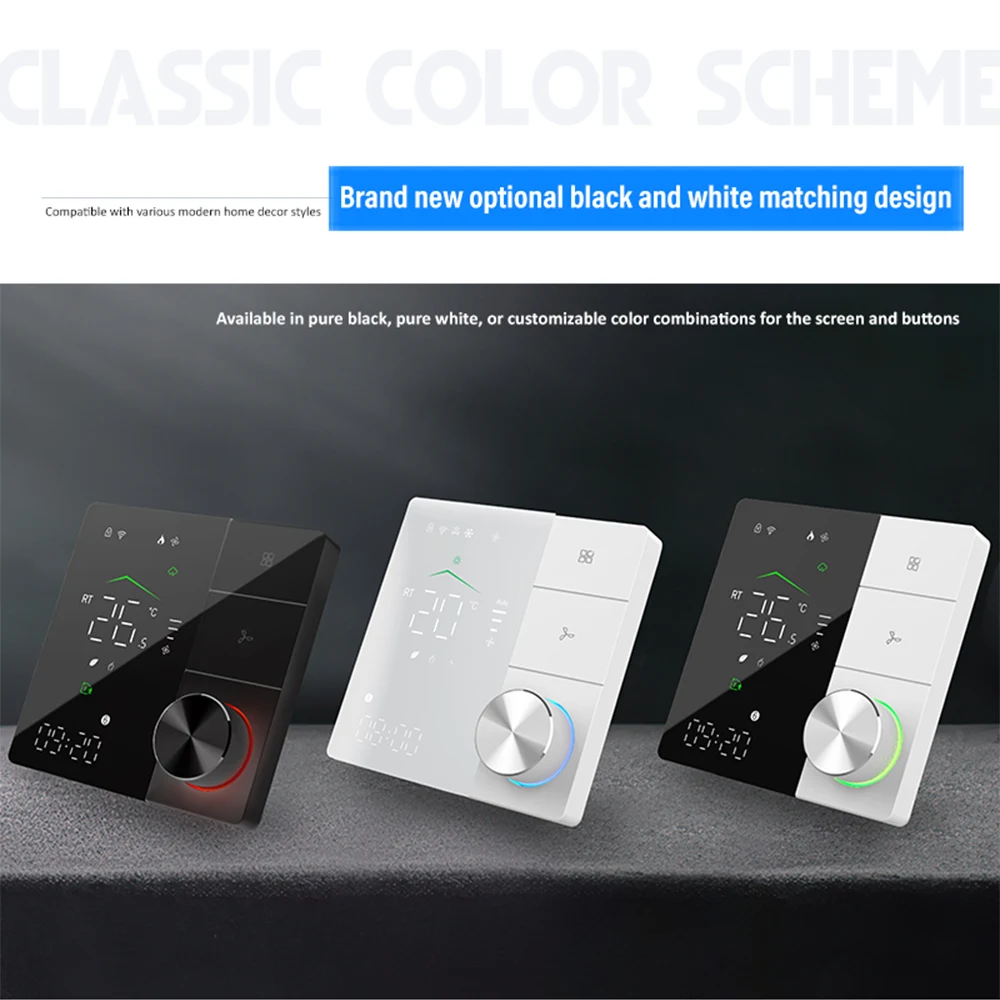

5. Classic black/white color scheme, seamlessly integrated.
6. Compatible with standard 86mm square cassettes and 60mm European cassettes to meet all installation environments;

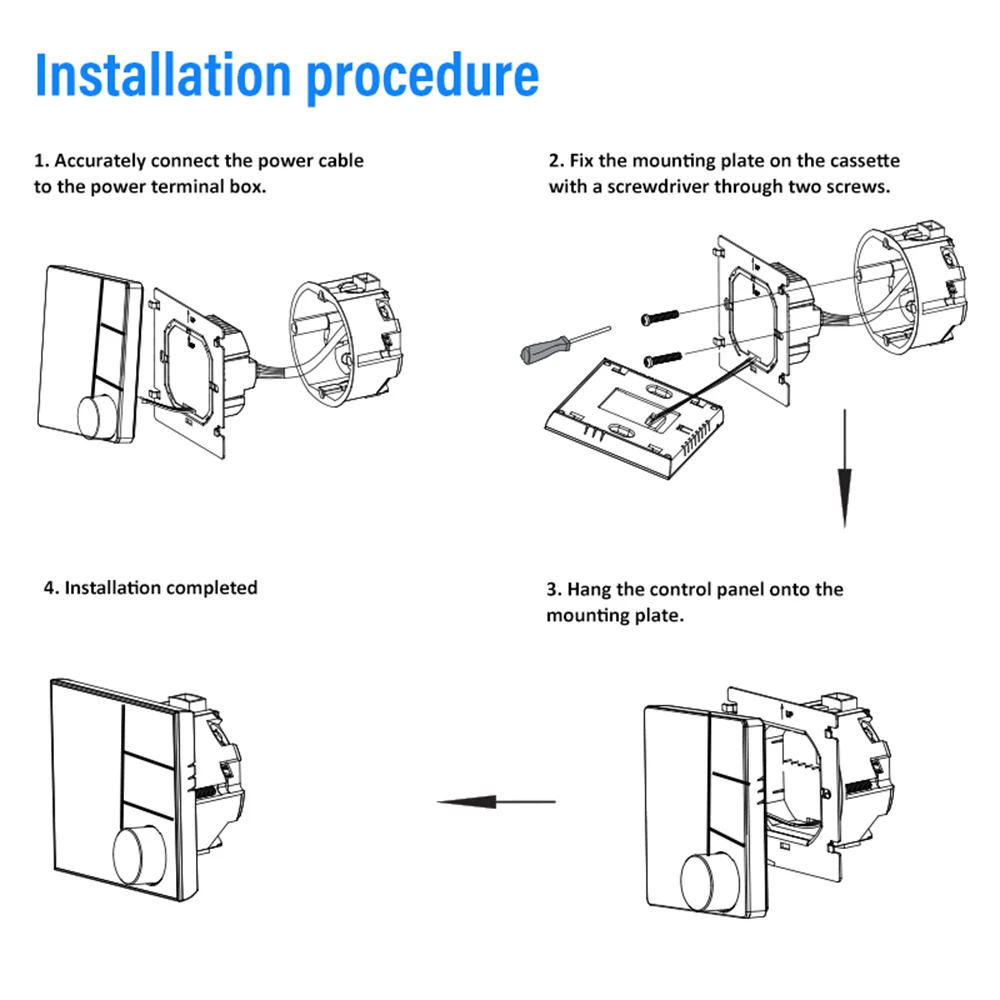

7. Interlock to connect gives you easy installation.

On Functionality

1. Smart Wifi thermostat APP remote control;
2. Strict temperature control accuracy (± 1°C) to provide the warmth you want;
3. Power off protection, save all your settings safely;
4. Preset adjustment of 5+1+1 mode in a week, programmable setting of 6 time periods a day, green energy saving, Less cost, more intelligent and environmental protection;
5. Support the creation of product local groups/shares to achieve unlimited centralized control of the number of products/ multi-terminal control;
6. Perfect access: Tmall Genie, Amazon echo, Google Home, full experience new voice control method
