Instructions:

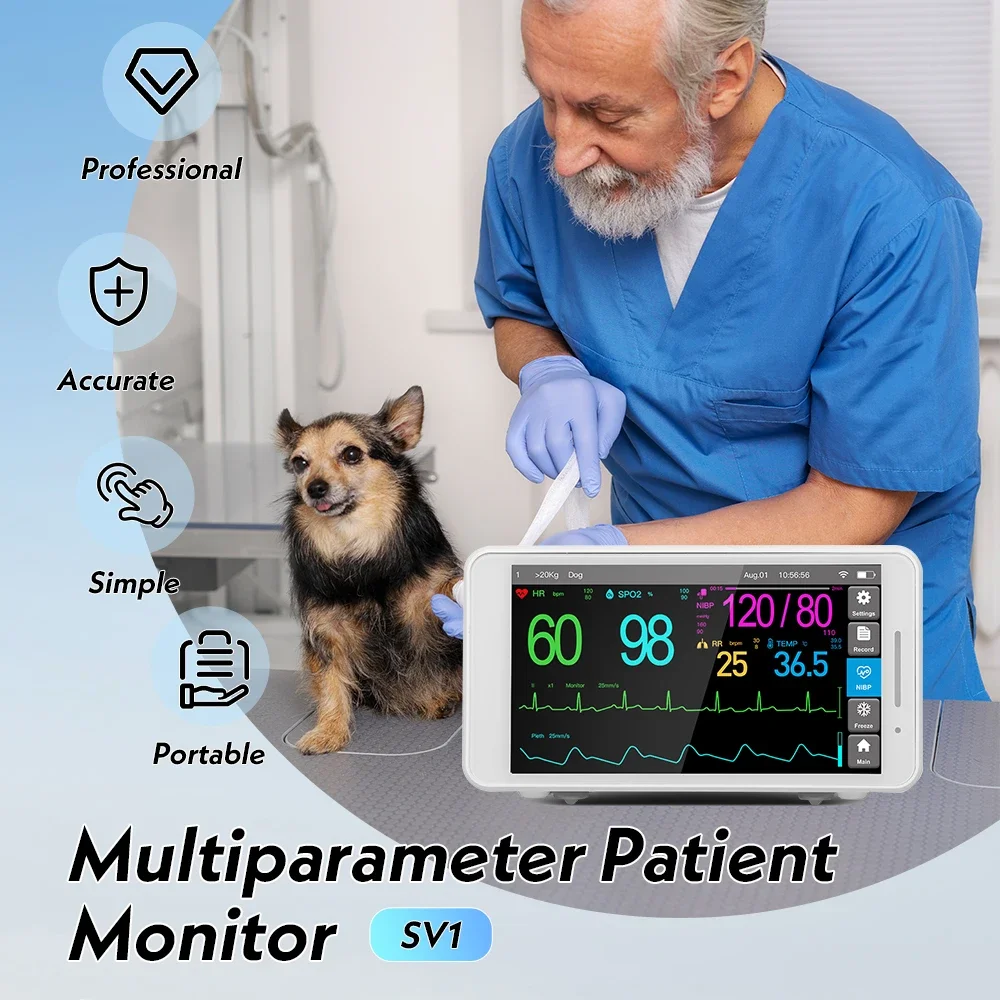

Color 5.5 inch Full touch color screen allows for easy-to-view vital signs monitoring at a glance, for your convenience all operation by touch only, no other hard key. It can also support different sliding screen operation. In addition, it can be connected to the central monitoring system via wired/wireless network so as to form a network monitoring system.
Application:Use for Animals Clinic& Hospital,Suitable for felines, canines and other big animals,all veterinarians could use it.
Feature:
1)5.5" Touch Screen Color Display,Three display interfaces (standard interface, large font, special interface for blood oxygen and blood pressure)
2)Full capacitive screen operation, easy to use ,Remote monitoring, central monitoring.
4)Software System supports network upgrade,Exclusive APP, cloud storage,APP scan the QR code to connect the device, the device supports wireless upgrade ;
5)Lithium battery power supply, long working hours
6)Professional:SV1 engineered to be completely veterinarian specific system, using only veterinary measurement accessories that are designed and tested only for animals.
7)Accurate:Unique develop SpO2, NIBP and ECG technology for the veterinary,ensure good reading and accurate during different situation from big to small animals.
8)Reliable:Constructed by sturdy materials case highly resist for critical environmental influence, also reduces electromagnetic interference that disrupt measurements, very suitable for long time monitoring.
9)Smart:Smart and user-friendly operation system, human voice reminder if alarm occur.
10)Simple:Color 12 inch Full touch color screen allows for easy-to-view vital signs monitoring at a glance, for your convenience all operation by touch only, no other hard key. It can also support different sliding screen operation.
11)Cost-effective:Caring for the companion animals,super pricing ratio and special policy support made it affordable for all the veterinarian.
12)Portable:Compact and ergonomic design with classical handle, with long life rechargeable battery it can be easily transfer to anywhere in need.
13)Connectivity:Wi-Fi connectivity as standard function, patient vital signs data can be view by CMS or APP in phone.(Your Own APP open for SDK.)
Performance:
ECG
● Lead mode
● Lead mode
3 Leads: RA,LA,LL; lead mode: I, II, III
5 Leads: RA,LA,LL,RL,V; lead mode: I, II, III,AVR, AVL, AVF, V
● Gain: 0.25mm/mV, 0.5mm/mV, 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
Heart rate
Measure range: 15~300bpm
Accuracy: 1%
Resolution: 1 bpm
Sensitivity: 200 μV P-P
Differential Input Impedance: 5 M ohm
Bandwidth
Surgery: 1 ~ 20 Hz
Monitor: 0.5 ~ 40 Hz
Diagnostic: 0.05 ~ 130 Hz
CMRR
Diagnostic Mode: 90 dB
Monitor Mode: 110 dB
Surgery Mode: 110 dB
● Electrode offset potential: 300mV
● PACE pulse detect
Range: ±4～±700mV
Width: 0.1～2ms
Rise time: 10～100µs
PACE pulse rejection
Range: ±2～±700mV
Width: 0.1～2ms
Rise time: 10～100µs
● Baseline Recovery: 3 s After defibrillation.
● Signal Range: 8mV p-p
● Calibration Signal: 1mV p-p, 5% accuracy
Respiration
● Method: Impedance between RA-LL
● Respiration Impedance Range: 0.3~3Ω
● Base Impedance Range: 200Ω~4000Ω
● Bandwidth: 0.3 ~ 2.5 Hz
● Gain: x0.25,x0.500,x1,x2,x4
● Respiration Rate
Measurement Range: 0~150BrPM
● Resolution: 1 BrPM
● Accuracy: 0~6 BrPM: unspecified
7~150 BrPM: ±2 BrPM
● Apnea Alarm: 10 ~ 40s
NIBP
● Method: Oscillometry
● Measure mode: Manual, Auto, STAT
● Measure Interval in AUTO Mode
1,2,3,4,5,10,15,30,60,90,120,180,240,480 min
● Measure Period in STAT Mode: 5 min
● Pulse Rate Range: 40 ~ 240 bpm
● Static pressure accuracy: 3mmHg
● Resolution: 1mmHg
● Accuracy
Maximum Mean error: 5mmHg
Maximum Standard deviation: 8mmHg
● Overpressure Protection: 150 mmHg
SpO2
● Measurement Range: 0 ~ 100 %
● Resolution: 1 %
● Accuracy
70% ~ 100%: ±2 %
69%: unspecified
● Pulse Rate
Measure and Alarm Range: 20~250bpm
Resolution: 1bpm
Accuracy: 3bpm
● Temperature
Channel: 2
Measure and Alarm Range: 0 ~ 50℃
Resolution: 0.1℃
Accuracy(no sensor): ± 0.1℃(0~ 50℃)
Display
5.5" Touch LCD Screen
Resolution:1280x720 pixels
Power Supply:100~240 VAC, 50/60 Hz, Pmax=90VA Fuse T1.5A
Battery:5250mAh 3.7V rechargeable battery
● Operating time after full charge is more than 240
minutes
● 5V, 2A charger
● Maximum charging time is less than 2hours.
Signal Interface
Network interface:Standard RJ45 Socket
Storage
Trend: 720 hours
NIBP review: 1000 NIBP events
Wave review: 2 hours
Alarm review: 200 alarm events
All storage data are non volatile.
Safety Standard:
IEC60601-1 Approved, CE marking according to MDD93/42/EEC
Temperature Environment:
Temperature:Working: 0 ~ 40Degree,Storage: -20 ~ 50 Degree;
Humidity:Working: 15% ~ 90 %
Storage: 15% ~ 90 % (no coagulation)
Size and Weight
Size:153*83*59mm
Weight: 0.25Kg
Package included:
1X SV1 Veterinary Patient Monitor
1X Digital veterinary tongue-clip SpO2 sensor
1X 3-lead ECG lead cable
3X ECG Veterinary clip
1X Animals NIBP cuff(7-13cm)
1X NIBP extension tube
1X Power cord
1X User Manual
