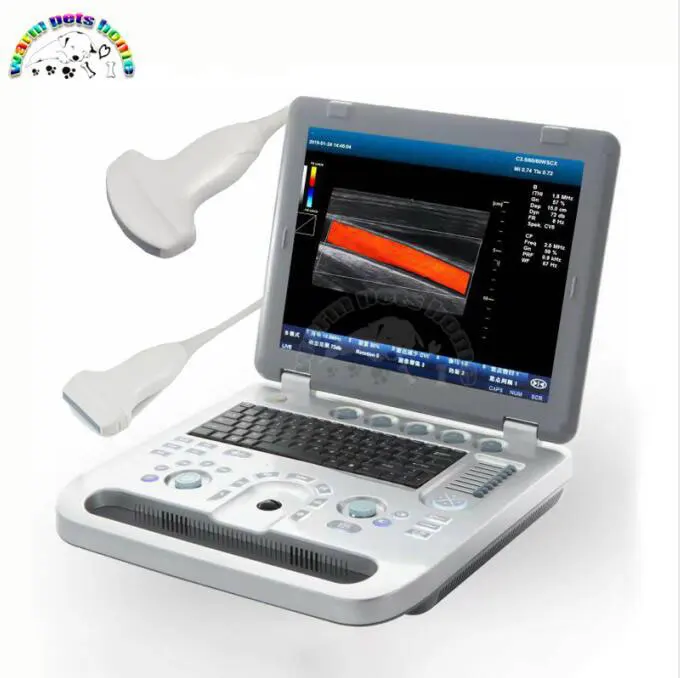

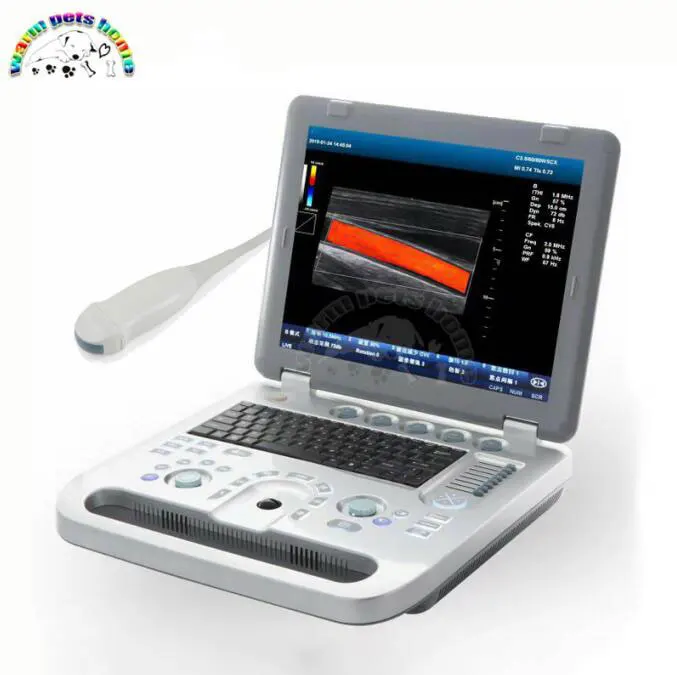

Máquina de ultrasonido Doppler Color 3D para perros, gatos, animales, equipo de ultrasonido portátil de 128G, escáner de ultrasonido veterinario

Note:1. Warranty: Lifetime warranty!2. This ultrasonic scanner has a system for detecting animals and a system for detecting people. If you want to buy a machine for detecting the human system, please contact customer service.3. If you want to know more about this ultrasonic scanner, please contact customer service.Weighing less than 5 kgs, comfortably pick and go.Built-in battery, working time more than 3 hours, extending point of care to sites where power sources are unavailable.Not only a professional ultrasound system, could also be a laptop computer upon request.15 inch LED display, as large as 175 degree viewing angle.8-segment TGC, precise adjustment of near/far gain.2 usb ports, connectivity of usb flash and laser printerDiscom 3.0 port, compatibility with archives, PACS or servesProjector port, a must for lecturing or trainingProbe variety: convex, micro-convex, endo-cavity/rectal, linear, volumeSpecialty: general, OB/GYN, vascular, cardiology, urinary, small organs, etc.Display mode; B, 2B, 4B, B/M, MImaging mode: 2D, free-hand 3DImage/video format: AVI, JPG, BMP, PNG, TIF, DICOM

Probes

3.5MHz R60/R50 convex probe; multi-frequency from 2.0MHz to 5.0MHz

7.5MHz L40 linear probe; multi-frequency from 5.0MHz to 10.0MHz

6.5MHz R10/R13 transvaginal probe; multi-frequency from 5.0MHz to 8.0MHz

3.5MHz R20 cardiac probe; multi-frequency from 2.0MHz to 5.0MHz

Beam forming

DBF, RDA, DRA, DRF

DFS

Dynamic frequency scanning from 2.0 to 12.0Mhz, 4 multi-frequency scanning

Dynamic range

≥100dB, 4 steps of switching functions

Image process technologies

controllable frame correlation, Gamma correction, edge enhancement, image smoothing, image denoisiong, automatical gain adjustment, up/down, left/right and black/white conversation.

Image magnification

stepless magnification, dynamic real-time PIP local zoom functions

Cine loop

512 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode.

Image management system

the functions of pigeonholing, browsing, comparing, saving, printing and transferring images; as many as hundreds of thousands of images and thousands of cine loop could be saved; saved images could be operated by full-screen browse under slide mode.

Measurement and calculation

measure perimeter and area by distance or ellipse method; measure perimeter and area by track method; measure body surface area and volume by ellipse method. 4 measure sticks; rate measure; linear stenosis ratio, area stenosis ratio, angle measure. All calculations are automatic.

Assist tools

puncture guide, distogram, sectional drawing

Menu manage interface

real time online support and navigation clew system, image fore-set and one-key optimization functions.

Auto-measure software of OB., Gyn., small organs, cardiac, urology and others

OB.:
Gyn.:
Small organs:
Cardiac:
Urology: remained urine sample, prostate,PSAD.
Patient cases database systems. All the data could be saved, searched and managed.
Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve.

Relative extended ports

VGA, S-Video, TV video port
USB2.0 port, 2G saving card
RJ-45 network port
Multiple kinds of saving modes are all supported, containing soft disk, hard disk, flash disk, CF card, SD card and others.
Compatible of jet printer, laser printer, video printer and video recorder

Presetting Formulas

Presetting system for diagnosis and measurement formulas. Different formulas could be set according to different races.
